FM-HBA-07 ORIFICE & MOUTHPIECE

DESCRIPTION

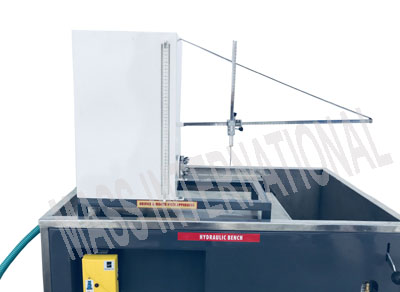

It consists of a tank provided with inlet supply diffuser, overflow outlet. Provision for fitting Orifice or Mouthpiece at the same position is provided. An arrangement is done to vary head and keep it constant at desired level. The set-up can be connected to Hydraulic Bench by flexible pipe line.


RANGE OF EXPERIMENTS

  • To determine the co-efficient of discharge of different orifice and Mouthpiece


FEATURES

  • Clear Acrylic test section
  • Superb Painted structure
  • Simple to operate & maintain


UTILITIES REQUIRED

  • Hydraulic Bench.
  • Water Supply & Drain
  • Electricity 1 kW, 220V AC, Single Phase
  • Floor Area 1.5 x 1.5


TECHNICAL SPECIFICATIONS

Product FLOW OVER NOTCH/WEIRS
Channel Test Section 600 x 250 x 180 mm made of stainless steel
Notches Material Brass (3 Nos.)
1. Rectangular Notch
2. 45° V Notch
3. 60° V Notch

The whole setup is well designed and arranged in a good quality painted structure.
